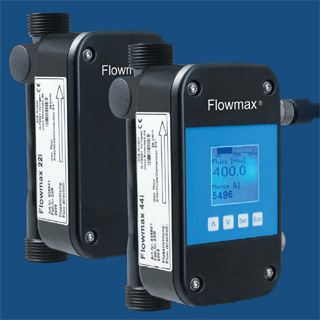

Flowmax 44i is a flowmeter for measuring liquid flow by calculating the volume flow rate in the liquid. Based on the Ultrasonic-Technology Flowmax is able to measure conductible and not conductible liquids contactless.
Flowmax suits for continuous volume measurements and with its 250 Measurements/Second also for very dynamic applications. Flowmax has no moving parts and is free of wear. The design of the pipe minimizes dead space over the whole geometry. All parts having contact to the medium are PSU. Therefore Flowmax can be used for a big amount of different medias like: distillated water, body cares, cosmetics, fluid food, alkaline liquids, toxic or aggressive media like concentrated acids and leaches. CIP cleaning processes are possible. Flowmax advantage is its high measuring accuracy and repeatability.
The measuring result is provided over a scalable pulse output. Programming and visualizing of the analog output is done via a RS485 interface. It is possible to share all measured information with IT-systems on the computer. Flowmax 44i shows the measured flow in series on a background lighted display with actual flow and volume counter. Standard programming can be done by the keypad. Additional to the editable pulse output there are, current output, two digital outputs and one digital input available.
All parameters of the flowmeter are individually configurable with MIB PC-Software FlowSoft and USBtoRS485-Converter. The integrated gas control with empty pipe detection on the alarm output offers additional information.

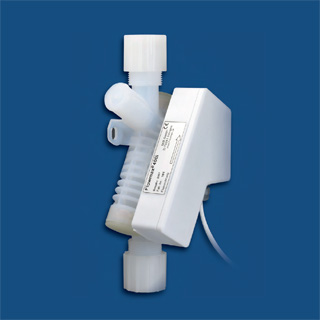

Flowmax® is a flowmeter for measuring liquid flow. Flowmax® is especially suited to measure dynamic processes in closed pipes of an automation environment.
Flowmax® 400i has no moving parts and is free of wear. The design of the pipe minimizes dead space over the whole geometry.
All parts having contact to the medium are PFA (New Teflon). Therefore Flowmax® 400i can be used for very alkaline, very toxic and/or very aggressive media like concentrated acids and leaches. CIP or SIP cleaning processes are possible. The measuring result is provided over a scalable pulse output and a programmable current output. All parameters of the flowmeter are individually configurable with MIB PC-Software FlowSoft® and USBtoRS485-Converter. The integrated gas control with empty pipe detection at the alarm output offers additional information. Process connection of Flowmax® 400i is free of seals using flare technology or NPT-screwing.
