| 온도 가변형 |
스위치 모듈 |
Heating용 | Cooling용 | 듀얼 서모스탯 | 기계식 서모스탯 |
KTO 011 | KTS 011 | ZR 011 | FZK 011 |

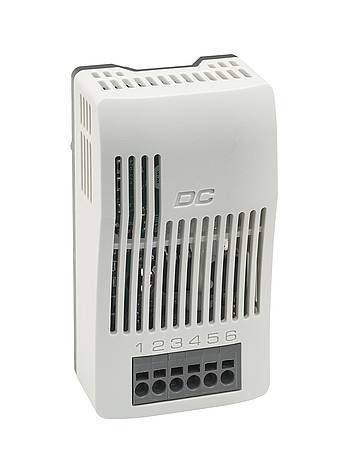

DCM 010 |
 |  |  |  |  |
| NC (Heating) or NO (Cooling) | NO and NC in one casing
(Heating and Cooling)
|
Changeover contact
(Heating and Cooling) |
NO
DC 20V ~ 56V |
| Small Compact Thermostat |
전자식 서모스탯 |
| KTO 111 |
KTS 111 |
ET 011(24VDC) |

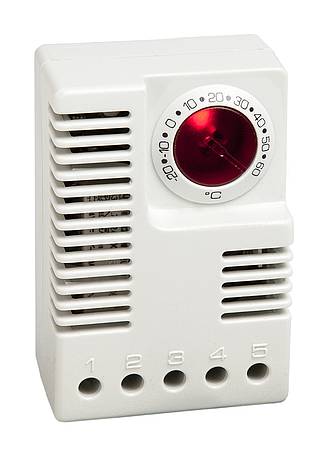

ETR 011 |
ETL 011 |
 |  |
 |
 |
 |
Push-In Terminals
NC (Heating) or NO (Cooling) |
Changeover contact
(Heating and Cooling)
DC 24V |
Changeover contact
(Heating and Cooling)
Status indicator(LED) |
Changeover contact
(Heating and Cooling)
DC 12V ~ 48V
Signal application |
| Small Compact Thermostat |
| STO 011 |
STS 011 |
|
|
|
 |
 |
|
|
|
NC (Heating) or NO (Cooling)
Thumbwheel setting dial |
|
|
|
| 온도 고정형 |
전자식 서모스탯 |
전자식 하이그로스탯 |
Heating / Cooling용 | 듀얼 서모스탯 | 방폭 서모스탯 |
외장 센서 결합형 |
외장 센서 결합형 |

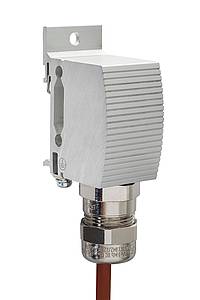

FTO 011 / FTS 011 | FTD 011 | REx 011 (T6) |

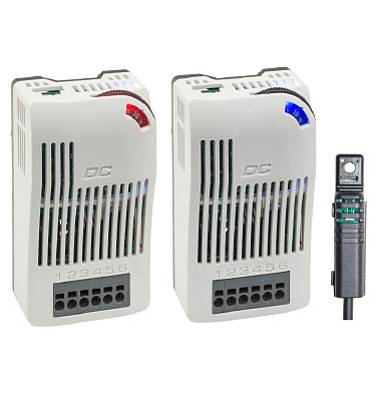

DCT 010 |

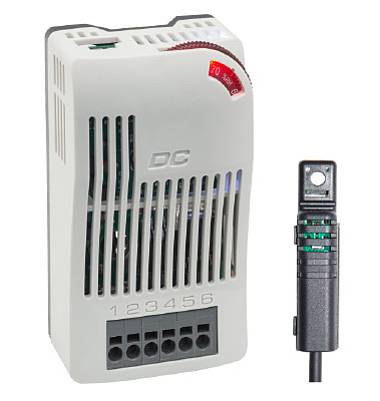

DCF 010 |
 |  |  |  |  |
NC (Heating) or NO (Cooling) - Tamper-proof
Default temperature settings
|
Switch Temperature 15 °C, 25 °C (T6)
Ex Protection type Ex II 2 GD |
NO or NC
(Heating and Cooling)
DC 20V ~ 56V
With external sensor
Secondary switching function: Humidity |
NO or NC
(Heating and Cooling)
DC 20V ~ 56V
With external sensor
Secondary switching function: Temperature |
