PTC Air Heaters
The PTC heat output can be regulated by the airflow applied in typical applications of heat generation. The higher the airflow, the higher the heat output and power(wattage).
New!
PTC air heater for 400VDC is also available now, to view the specifications please
click here
PTC Air Heater Models
PTC Model Selection
Features
•
Very low air resistance
•
Long service life
•
No Thermostat Required
•
Virtually unlimited life
•
No moving parts to wear
•
No electrical noise
•
The higher the temperature, the more electricity efficient
•
Does not burn when in contact with paper, matches or clothes
Specifications
•
Extra-high-heating-efficiency Fin Pitch: 1.2mm, 1.68mm
•
Extra-low-air resistance Fin Pitch: 2.0mm, 2.6mm
•
Includes Safety Fuse
•
Voltage : AC/DC 120V, 240V, 48V, 24V, 12V, 3V
•
Power : 50~2000W
•
Safety : CUL, VDE, TUV
•
Patents : US, Germany, France, Britain, Taiwan, China
Applications
•
Hot air heaters
•
hand dryer
•
clothes dryer
•
dish dryer
•
shoe dryer
•
air conditioner (heater)

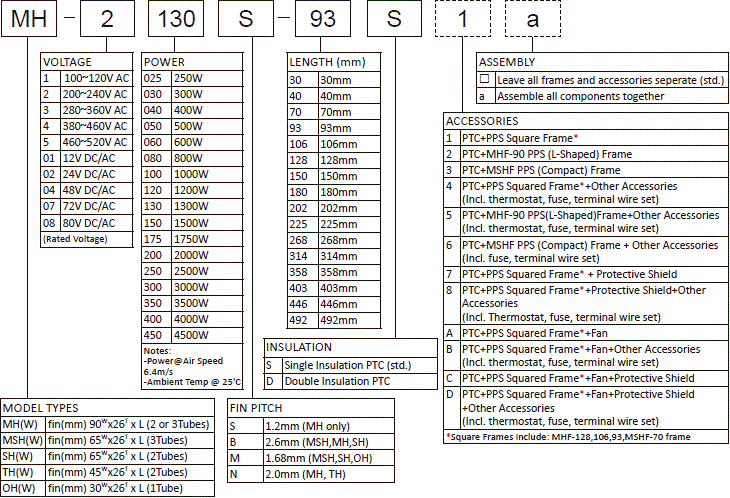

PTC Air Heater Part Numbering
